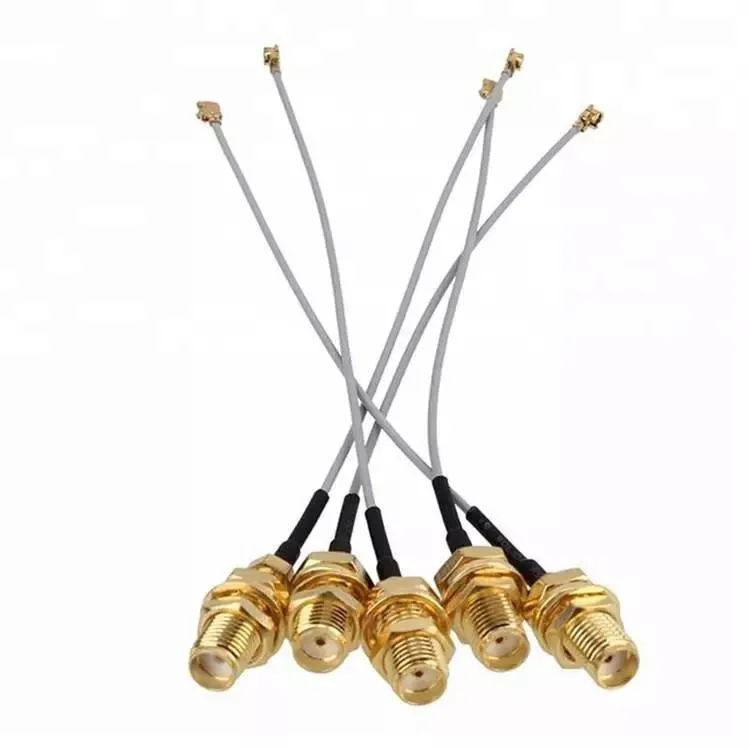

SMA Female to U.fl Cable

SMA Female To U.Fl Adapter RF1.13 Pigtail Cable

WL-001026113-300.pdf

Description

Product Specifications

Description

RF Cable: Bulkhead Connector Rf1.13 Impedance:50 Ohm
RF Cable + connectors can make cable into:1.SMA Male to Male cable 2.SMA female to female cable | So this product can meet your diversified needs.
Application: Used for the Network system, security system,FPV devices,Wifi router,WLAN Wifi antenna,Radio,Video, 4G 5G LTE Antenna, GPS antenna, module etc.（NOT For TV）

Data Sheet of RF Cable Assembly- Kunshan Wavelink
Item	Specifications
1) Product Information
Place of Origin	Jiangsu , China
Brand Name	Wavelink
Model Number	WL-001026113-300
2) Technical Information
Center Frequency(MHz)	0-6GHz
V.S.W.R	<1.5
Impedance	50 Ω / 75 Ω
Maximum input power	50W
Insulation Resisitance	500 M Ohm min
3) Mechanical Information
Cable Material	1.13/RG178/174/316/58U/LMR
Cable length (mm)	10cm/20cm/50cm/1m or Customizable
Connector	N-Type/SMA/SMB/BNC/F/MCX/FME/Fakra
Gender	Female/Male
Insulator	PTFE
Package	Ploybag , carton
4) Environmental Information
Relative humidity	55%~75%RH
Waterproof Level	IP65
Operating Temperature	-40°C ~ +85°C
Storing temperature	-30°C ~ +85°C
Certificate	ISO9001
