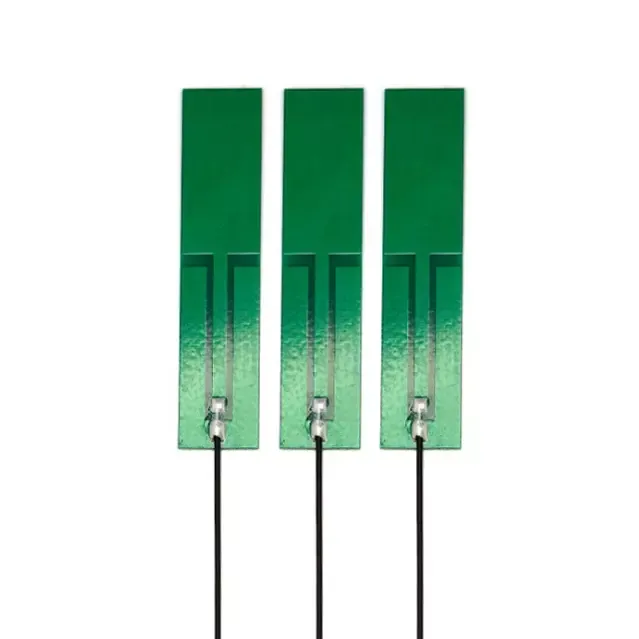

70*15mm 4G PCB Antenna

Built-in 4G PCB Internal Antenna With IPEX 70*15 4G GSM 2G 3G 868MHz 915MHz NB-IOT Patch Antenna
Description
Product Specifications

Description

4G PCB Antenna

PCB antenna is a transducer converting current waves into electromagnetic (EM) waves in a high-frequency PCB. PCB antennas convert current in high frequency into EM waves that propagate into the air. There are two PCB antennas in a high-frequency PCB. They are embedded into the PCB as the etched copper structure.

  • High Gain Omni-Directional internal Antenna for Router, WiFi Wireless WLAN, PC, Laptop, Bluetooth, Drone, PS4, etc.
  • Use for Mini PCIe Card(Cannot be used for M.2/NGFF interface.)
  • Compatible WiFi/Bluetooth module with Mini PCIe interface: 3160, 7260, 6235, QCA6174, MC7700, AR5B22, DW1510, RTL8188CE, 633ANHMW, 4965AGN, QCA9005, 8260HMW, BCM94313HMGB, BCM94322HM8L Card etc.

Product Specifications

Category
4G Lte PCB Antenna
Model
WL-4GIP7015
Frequency Range-MHz
698-960/1710-2700
Gain-dBi
3
V.S.W.R
≤2
Nominal Impedance-Ω
50
Polarization
Vertical
Maximum Power-W
50
Dimensions-mm
70*15
Connector
SMA/IPEX/U.FL
Operating Temperature
-40℃~+80℃
Storage Temperature
-40℃~+85℃
Environmentally Friendly
ROHS Compliant
