32*8mm GSM FPC Antenna

GSM Antenna

Hot Selling 32*8mm Flexible Internal FPC Antenna GSM FPC Antenna

WL-GSMIF328-50.pdf

Description

Product Specifications

Description

GSM FPC Antenna

Flexible printer circuit (FPC) board serves planar wireless antenna design. Effectively to supersede the antenna based on the traditional fixed printer circuit board (PCB) implement, and then provide free dimension of antenna and wireless system integration to designer.

High Gain Omni-Directional internal Antenna for Router, WiFi Wireless WLAN, PC, Laptop, Bluetooth, Drone, PS4, etc.
Use for Mini PCIe Card(Cannot be used for M.2/NGFF interface.)
Compatible WiFi/Bluetooth module with Mini PCIe interface: 3160, 7260, 6235, QCA6174, MC7700, AR5B22, DW1510, RTL8188CE, 633ANHMW, 4965AGN, QCA9005, 8260HMW, BCM94313HMGB, BCM94322HM8L Card etc.
Provide：As a GSM antenna manufacturer and wholesale, provide 4G GSM Antenna, GSM Rubber Antenna, GSM Wifi Antenna, GSM External Antenna, GPS GMS Wifi Antenna etc,.

Product Specifications

Product Name	Internal GSM FPC Antenna
Center Frequency	824-960/1710-2170MHZ
V.S.W.R	≤4
Gain	3dBi
Polarization	Vertical
Impedance	50Ω
Maximum Input Power	50W
Antenna Size	32*8mm

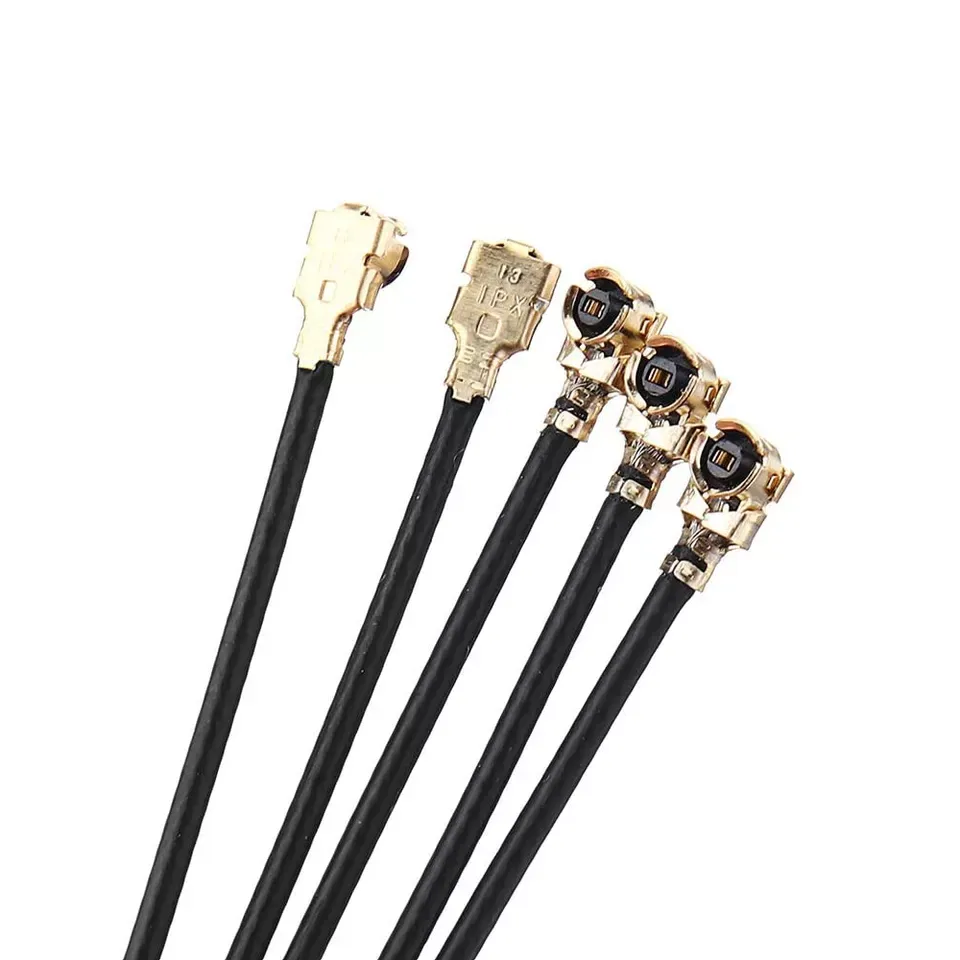

Connector Type	IPEX/U.FL or Customized
Cable Type	RF1.13/RG178 Cable
Cable Length	10cm/15cm/20cm/30cm or Customized
Operating Temperature	-40℃~+80℃
Storage Temperature	-40℃~+85℃
Environmentally Friendly	ROHS Compliant
