30mm 2.4G Rubber Antenna

Wavelink 3cm RPSMA Male Straight Omni WiFi Aerial 2.4GHz 3dBi Rubber Zigbee Antenna With RPSMA Male

WL-2400E30.pdf

Description

Product Specifications

Description

Compatible with: Wireless Antenna Wifi, 4G Wifi External Antenna, WiFi Router Antenna, Wireless Network Router, WiFi AP Hotspot Modem, WiFi USB Adapter, Desktop PC Wireless Mini PCI Express PCIE Network Card Adapter;
Compatible with: WiFi IP Security Camera; Wireless Video Surveillance DVR Recorder; Truck RV Van Trail Rear View Camera, Reverse Camera, Backup Camera, Industrial Router IoT Gateway Modem, M2M Terminal, Remote Monitoring and Control, Wireless Video, Wireless HDMI Extender;
Compatible with: Furrion vision s backup camera, 5GHz 5.8GHz FPV Camera Monitor, FPV Drone Racing Quadcopeter Controller; 5GHz 5.8GHz Wireless AV Video Audio Receiver HDMI Extender;

Category	2.4GHz RPSMA Male Rubber Antenna
Model	WL-2400E30
Frequency Range-MHz	2400-2500
Gain-dBi	2
V.S.W.R	≤2
Nominal Impedance-Ω	50
Polarization	Vertical
Maximum Power-W	50
Dimensions-mm	30

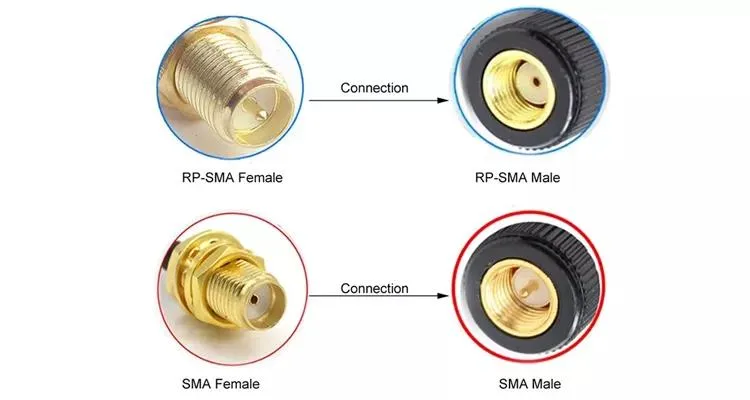

Connector	RPSMA Male or customized
Operating Temperature	-40℃~+80℃
Storage Temperature	-40℃~+85℃
Environmentally Friendly	ROHS Compliant
